NEXOPART EML, UWL and Ro-Tap/RoTap Sieves & Sieve ShakersContact us for information on NEXOPART’s EML range of Digital Sieve Shakers and W.S. TYLER’s Ro-Tap Mechanical Sieve Shakers. We can help you decide which sieve shaker (Ro-Tap or Digital EML) is best suited to your needs as there are important strengths and weaknesses to each.
HAVER & BOECKER is one of the world’s leading wire weaving companies. The HAVER Test Sieve range provides the optimum design for every operational requirement and can be used in combination with HAVER & BOECKER and American subsidiary W.S. TYLER’s test sieve shakers.
If you have a Haver & Boecker/NEXOPART EML Sieve shaker Download the Document below For some Tips on how to get Maximum Use out of your Shaker:
Click on Image
NEXOPART TEST SIEVES
Conforming to international standards – Fabricated according to valid standards:
Your advantages at a glance – A particularly smooth surface of frames prevents cross-contamination. – An extremely stable sieve structure guarantees a long life. – The sieve fabric retains its tension exceedingly well even after intensive use. – Compatibility with equivalent test sieves manufactured in accordance with current standards.
Sieve Media Options We provide sieve media of electroformed sheets with aperture sizes from 5 micron up to 500 micron, sieve media of woven wire cloth with aperture sizes from 20 micron up to 125 mm and perforated plates made from galvanized steel with openings from 4 mm up to 125 mm.
Available Apertures
»Click on the Image Above or This Link to Load the List of NEXOPART Sieve Apertures«
>> To see our page on NEXOPART Sieves including Alpine Air Jet Replacement Sieves click on this line <<
NEXOPART TEST SIEVE SHAKERS
Table of NEXOPART Sieve Shaker Comparisons:
»Click the Image or Here to See the NEXOPART Sieve Shaker Product Range Summary«
NEXOPART have introduced more options for the EML 200 Series….
NEXOPART EML 200 PURE (Basic Model)
The new test sieve shaker stands out with its simple and rapid operation. Two specific regulated amplitudes for coarse or fine material can be selected. Sieving begins immediately once the timer is set and coarse or fine is selected. The new NEXOPART EML Pure is recommended as a basic machine for standard analysis. It is proven Haver & Boecker quality at a fair price. We recommend the Haver EML 200 Premium if a data interface or selectable amplitude settings are required.
NEXOPART EML 200 Premium (Quiet Model)
The extra-large display offers operators an excellent overview and is user-friendly. The new EML Premium is ideally suited to users who demand precision and reproducible sieve analysis.
NEXOPART EML 200 Remote (Dry or Wet)
Technical Data for the EML 200 Range…..
NEXOPART EML 315
EML 315 Digital Plus N (Wet Sieving)
EML 315 Digital Plus T (Dry Sieving)
The NEXOPART EML 315 digital plus for test sieves with diameters of up to 315 mm can be used for dry and wet sieving of 6 kg bulk material maximum. You can set and store sieving time, interval and amplitude for reproducible sieving results.
Controlled sieving action – The 3D sieving action saves time and manual re-sieving. – Self-readjusting amplitude for comparable sieving results.
Further advantages at a glance – Memory of ten sieving programs. – Low-noise and maintenance free. – Test sieves can be changed easily by using the quick-release clamping system TwinNut.
Technical data
NEXOPART EML 450
EML 450 Digital Plus N (Wet Sieving)
EML 450 Digital Plus T (Dry Sieving)
The NEXOPART EML 450 digital plus for test sieves with diameters of up to 450 mm can be used for dry and wet sieving of 15 kg bulk material maximum. It is the largest electromagnetically driven 3D Test Sieve Shaker in NEXOPART’s range. You can set and store sieving time, interval and amplitude for reproducible sieving results.
Controlled sieving action – The 3D sieving action saves time and manual re-sieving. – Self-readjusting amplitude for comparable sieving results.
Further advantages at a glance – Memory of ten sieving programs. – Low-noise and maintenance free. – Test sieves can be changed easily by using the quick-release clamping system TwinNut.
Technical data
NEXOPART UWL 400
UWL 400 N (Wet Sieving)
UWL 400 T (Dry Sieving)
The NEXOPART UWL 400 for test sieves with frames made from stainless steel or beechwood is designed for dry or wet sieving with coarse sample material. This most powerful test sieve shaker of NEXOPART is driven by two rotary current unbalanced motors to produce a three-dimensional sieving action.
For analysis in big dimensions – The 3D sieving action saves time and manual re-sieving. – Optimal sieving results with great sample quantities due to a robust eccentric drive. – Test sieves can be changed easily by using the quick-release clamping system TwinNut.
Technical data
Sound Absorbing Cupboards for NEXOPART Test Sieve Shakers
Test sieve shakers can be used in sound absorbing cupboards in order to reduce the noise level in laboratory environment. This measure enables the noise level to be reduced by up to 28 dB (A) depending on the machine type. Double observation doors in sound absorbing cupboards for the NEXOPART EML 450 digital plus and NEXOPART UWL 400 will provide better access to the machine.
TYLER Ro-Tap RX-29 (200mm Sieves)
The TYLER Ro-Tap RX-29 for test sieves up to 203 mm diameter reproduces the circular and tapping motion of hand sieving but with an even mechanical action. The TYLER Ro-Tap RX-29 is manufactured by W.S. Tyler, the American subsidiary of HAVER & BOECKER.
Most suitable machine for abrasive materials – Enables sieving of agglomerating bulk materials. – Prescribed in the FEPA-standard for abrasive industry.
Further advantages at a glance – The 3D sieving action saves time and manual re-sieving. – Easy handling – only sieving time has to be set.
Technical data
TYLER Ro-Tap RX-30 (300mm Sieves)
The TYLER Ro-Tap RX-30 for test sieves up to 300 mm diameter reproduces the circular and tapping motion of hand sieving but with an even mechanical action. The TYLER Ro-Tap RX-30 is manufactured by W.S. Tyler, the American subsidiary of HAVER & BOECKER.
Most suitable machine for abrasive materials – Enables sieving of agglomerating bulk materials. – Prescribed in the FEPA-standard for abrasive industry.
Further advantages at a glance – The 3D sieving action saves time and manual re-sieving. – Easy handling – only sieving time has to be set.
Technical data
TYLER Ro-Tap R-30050 Sound Enclosure
The W.S.TYLER Ro-Tap RX-29/30 sound enclosure is designed to be used exclusively with Ro-Tap Sieve Shakers. Operating noise levels are reduced from approximately 85 dB to 78 dB. The cabinets are fabricated with 18 gauge steel and a 1″ metal-faced, acoustic foam inner liner.
TYLER Ro-Tap Stand
The W.S. Tyler RO-TAP Test Stand is designed to provide a secure testing platform for your RO-TAP device. Outfitted with pre-drilled holes, this test stand allows RO-TAP sieve shakers to be bolted down, preventing the device from shifting during operation. Additionally, the stand can be bolted to your lab floor, increasing the stability of your testing process. Its sturdy steel construction guarantees the safe operation of RX-29 and RX-30 RO-TAP Sieve Shaker models. Featuring an easy-to-manage footprint, the RO-TAP test stand creates optimized laboratory space dedicated to test sieve analysis.
TYLER Ro-Tap® RX-94
The W.S. TYLER Ro-Tap® RX-94 for test sieves up to 203 mm diameter can take 2 sieve sets simultaneously. It reproduces the circular and tapping motion of hand sieving but with an even mechanical action. It is manufactured by W.S. Tyler, the American subsidiary of HAVER & BOECKER.
Two at one go. – Simultaneous analysis of 2 samples. – The 3D sieving action saves time and manual re-sieving. – Enables sieving of agglomerating bulk materials. – Easy handling – only sieving time has to be set.
Technical data

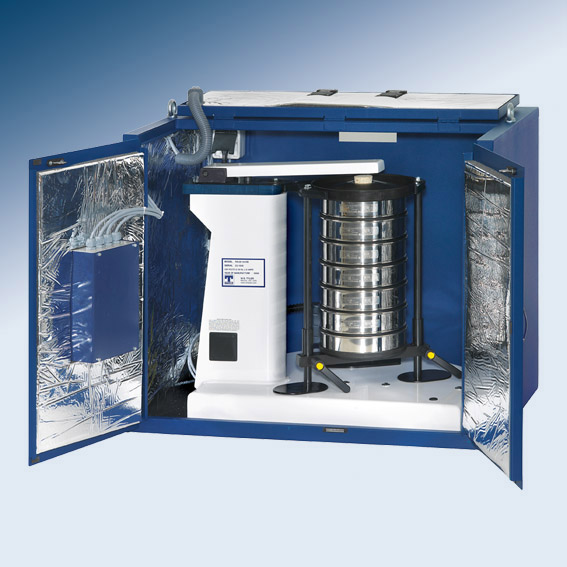

Most suitable machine for abrasive materials – The safety cupboard meets the demands of job safety that are necessary for CE-labelling in Europe. – Enables sieving of agglomerating bulk materials. – Prescribed in the FEPA-standard for abrasive industry.
Further advantages at a glance – The 3D sieving action saves time and manual re-sieving. – Easy handling – only sieving time has to be set.
Technical data
HAVER RPT Rotating Sample Reducer
HAVER RPT 1:10 The HAVER RPT Rotating Sample Reducer produces representative sample quantities of solids and suspensions at the rate of 1:8, 1:10 or 1:30. It combines three dividing methods in one unit and provide the best possible sample reducing available today with an accuracy of 99.9%. Even heavy flowing materials can be divided with high accuracy.
Quick and flexible use – 3,000 dividing steps per minute. – Suitable for dry and wet division.
Further advantages at a glance – Representative test samples. – Integrated, infinitely variable vibratory feeder. – Prevention of segregations due to sedimentation. – Easy handling.
Technical data
HAVER UFA Ultrasonic Frequency Variation for Test Sieves
HAVER UFA (clamping ring, converter and generator) The HAVER UFA is especially designed for the sieving of powders at critical particle size cuts of ≤ 300 micron. The screen is excited by means of ultrasonic wave at continuously varying frequency. The tendency to block is reduced, the performance of the sieve is increased and the time required for sieving is significantly shortened.
NEXOPART USC – Ultrasonic Cleaners
USC 500 (up to 500mm Sieves) NEXOPART USC test sieve cleaners guarantee that sieves are cleaned thoroughly and gently while at the same time saving energy. They have proved to work outstandingly well in conjunction with the NEXOPART USC cleaning fluid. USC cleaners are available for cleaning individual sieves and for the simultaneous cleaning of up to five sieves.
Your advantages at a glance – The sieves are cleaned thoroughly and gently while at the same time saving energy. – Easy handling. – Up to five test sieves can be cleaned simultaneously.
Technical data
Sieve Pans for Dry and Wet Sieving
Sieve pans collect the sieve underflow of bulk material. These are the fine particles. Please note that you need test sieves with discharge nozzle for wet sieving. Sieve pans with diameters up to 203 mm are equipped with bevel bottoms, larger sieve pans made from stainless steel with plane bottoms.
Retrofit Kit for Dry and Wet Sieving
Our HAVER Test Sieve Shakers with external control gear can be used for dry and wet sieving. For dry sieving you need a cover with inspection glass and a closed sieve pan, for wet sieving a cover with wide spreading spray diffuser and a sieve pan with discharge nozzle.

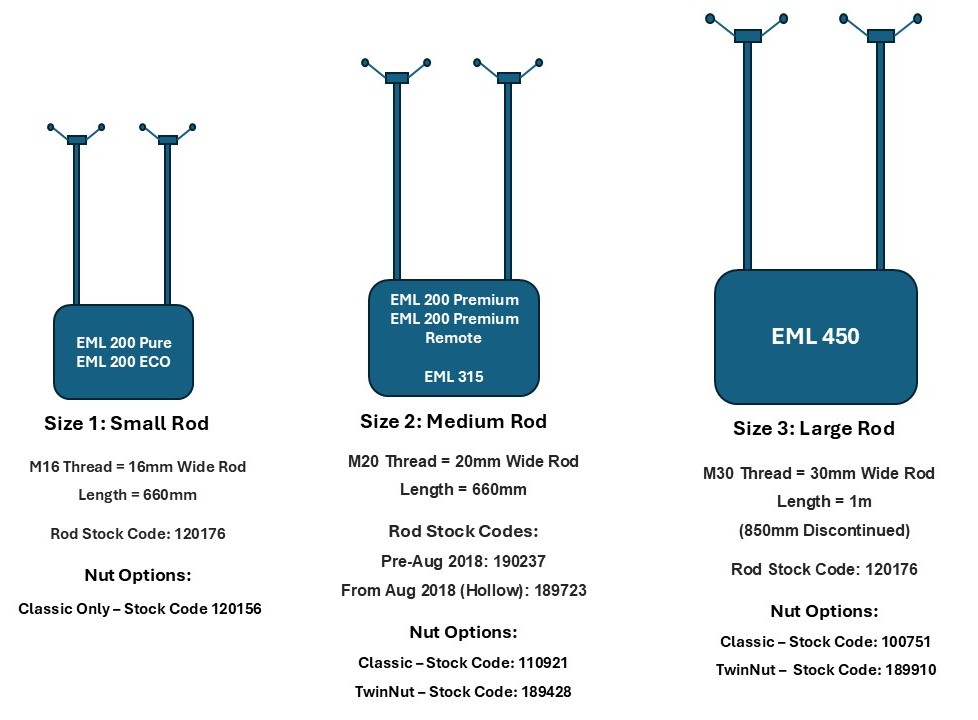

TwinNut Rapid Clamping System
For fixing the sieve tower on HAVER Test Sieve Shakers we quote the clamping system Classic and the quick-release clamping system TwinNut. They differ in parting TwinNut knurled nuts, which enable height adjustment without time-consuming screwing, and especially suit sieving with frequently-diversified sieve towers.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
